Arizona Vortex Scale Model 1:6 – STL Files | 3D Print Your Own Training Tool

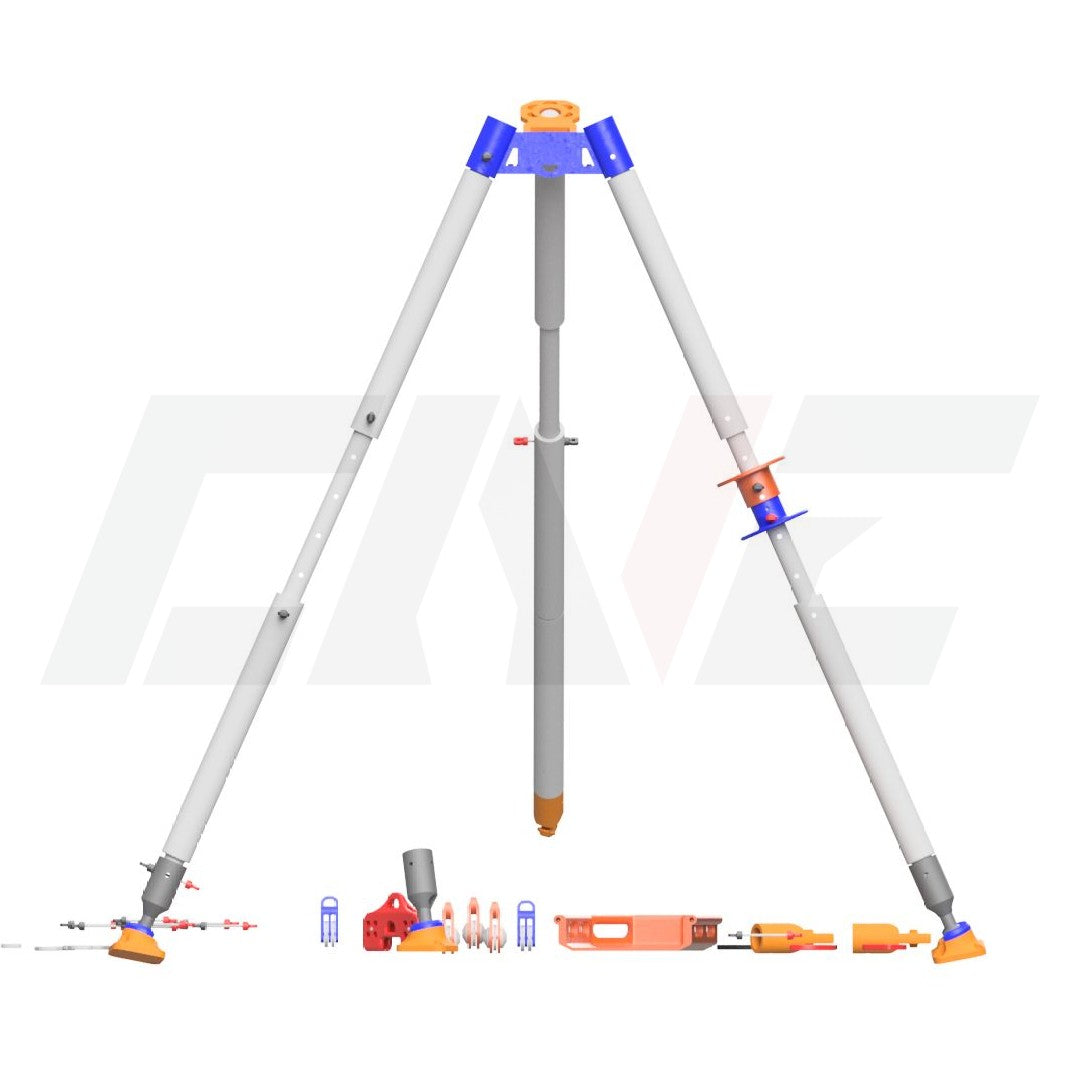

Print your own Arizona Vortex training model from home or your academy. This digital file pack includes everything you need to print a fully functional 1:6 scale replica of the Arizona Vortex rescue system — the world's most recognized tripod rescue tool — optimized for FDM printing in ABS or PLA+.

Every component replicates the assembly logic of the real system so your team can train effectively without needing the original equipment in the room.

What's included

🗂️ Complete STL file pack

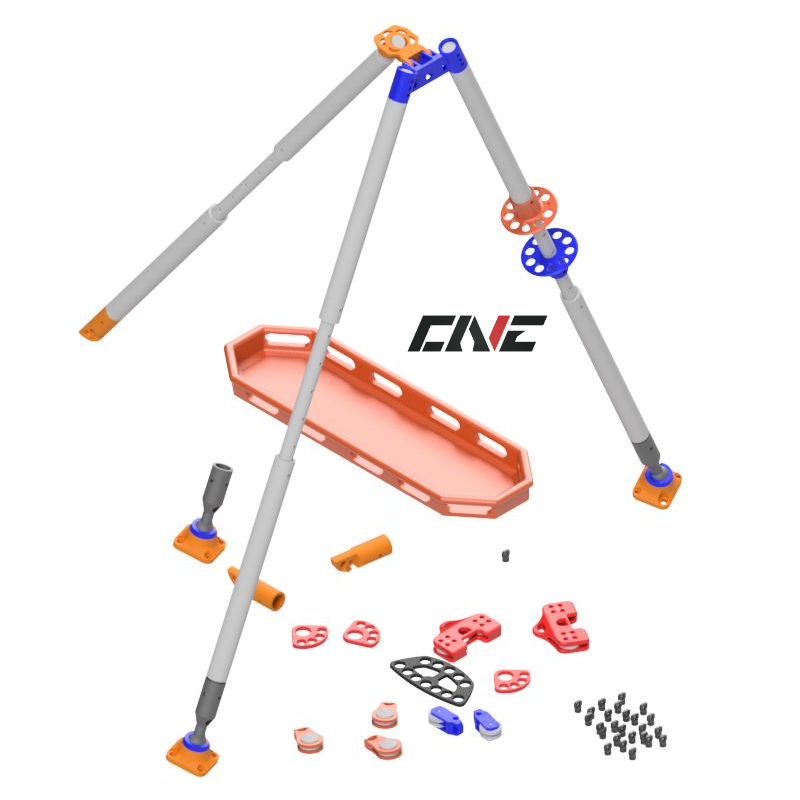

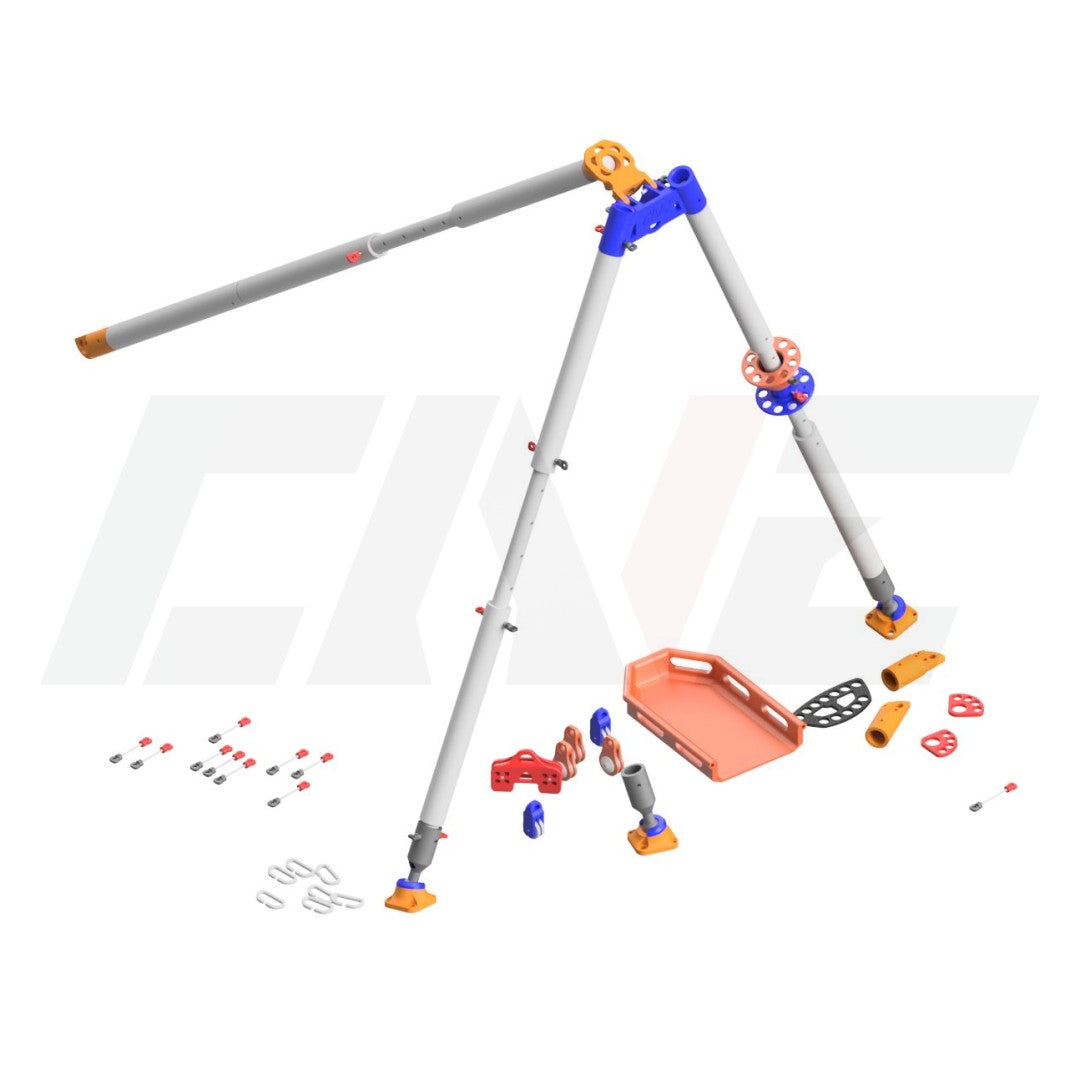

All parts needed to print the full Arizona Vortex 1:6 scale model, including legs, apex, base plates, pulleys, carabiners and rescue litter.

📐 Assembly instructions (PDF)
Step-by-step guide to assemble the model exactly like the real Arizona Vortex system.

🔑 Personal use license
Print as many copies as you need for personal or academy training use.

Recommended print settings

Who is this for?

👨🏫 Technical rescue instructors
🏫 Fire academies and training centers
🧗 Rope rescue and vertical rescue teams
🏭 Confined space rescue programs
🖨️ 3D printing enthusiasts in the rescue world

Why print your own?

✅ Print in your academy colors
✅ Replace individual parts if needed
✅ Scale your training program without extra cost
✅ Immediate download — start printing today
✅ Designed for intensive classroom use

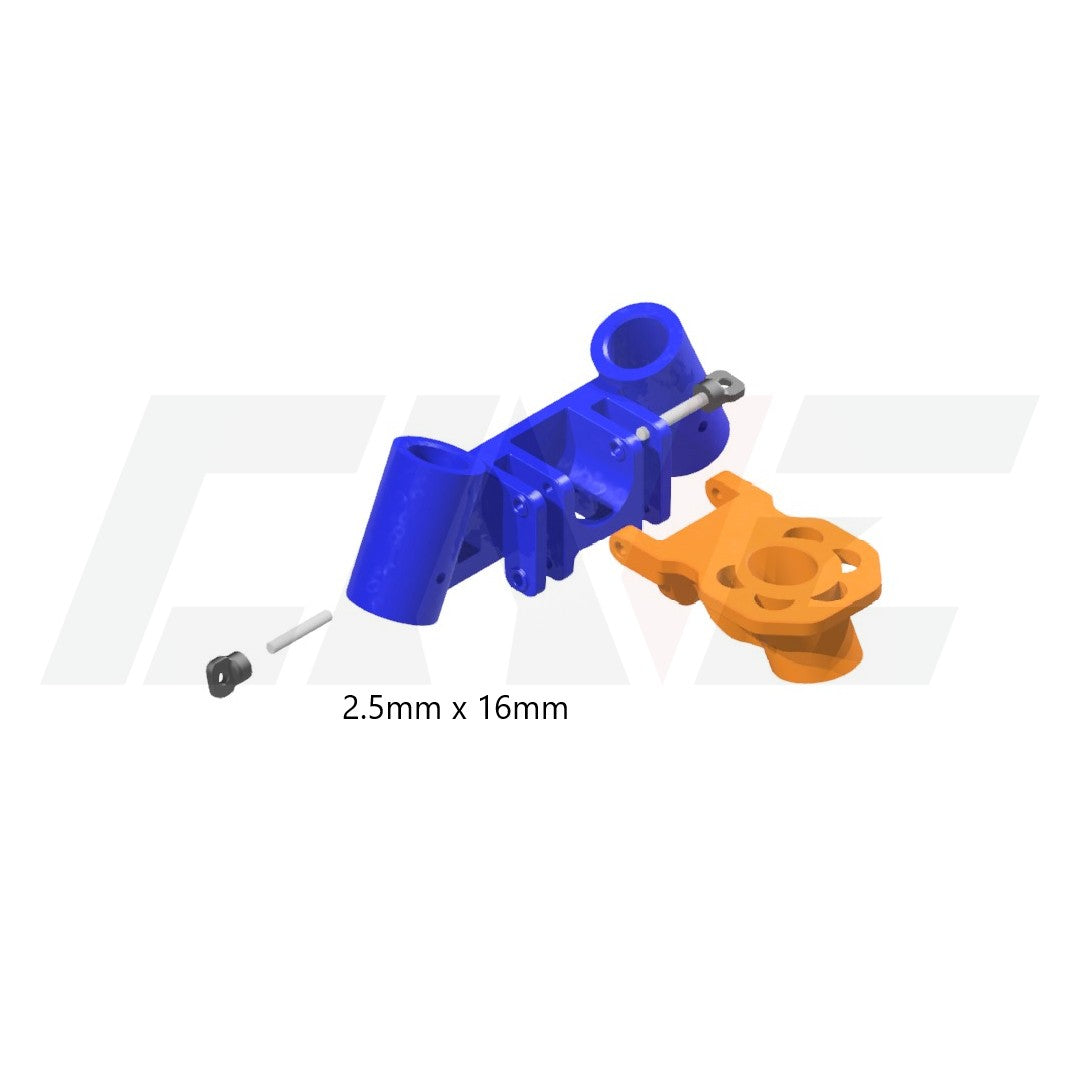

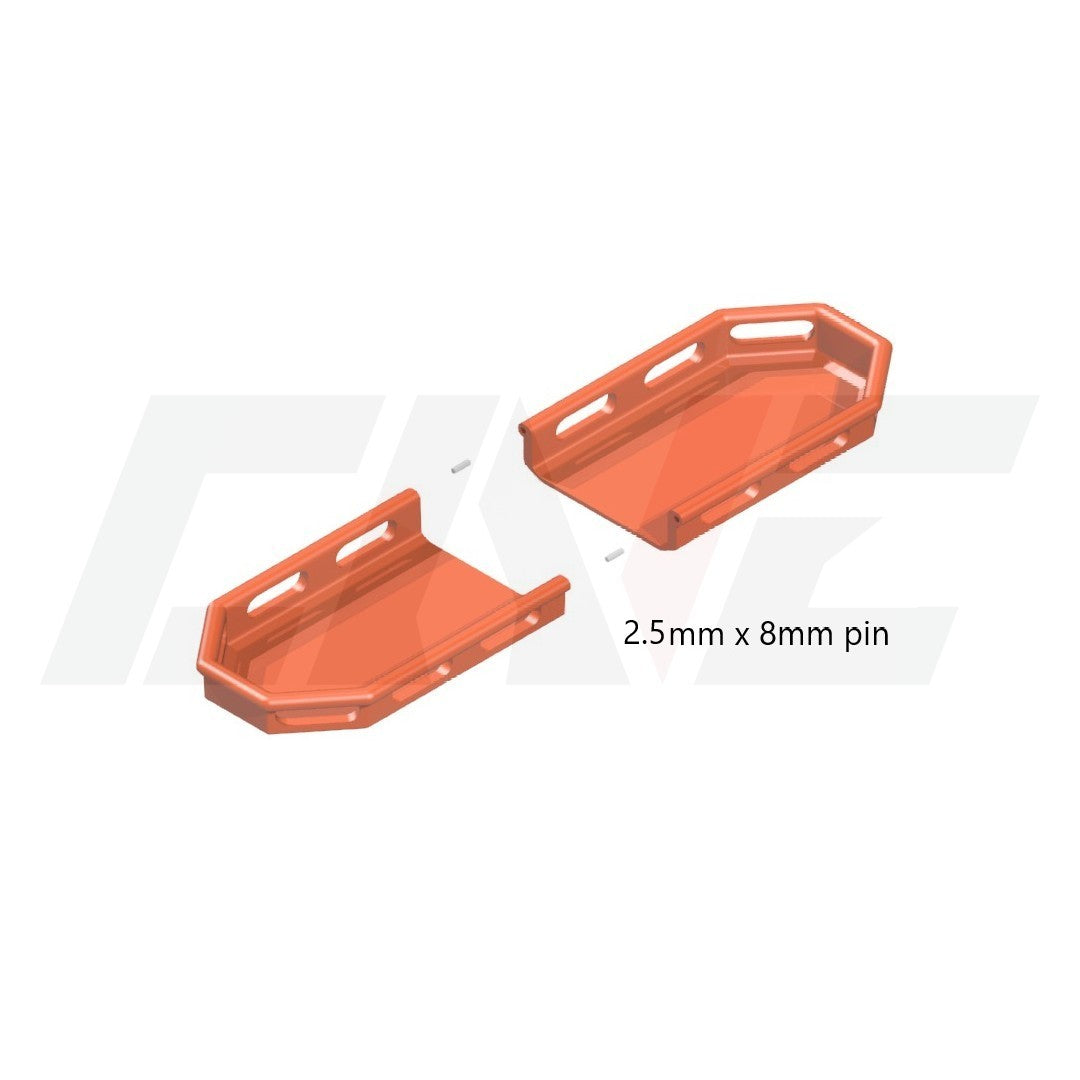

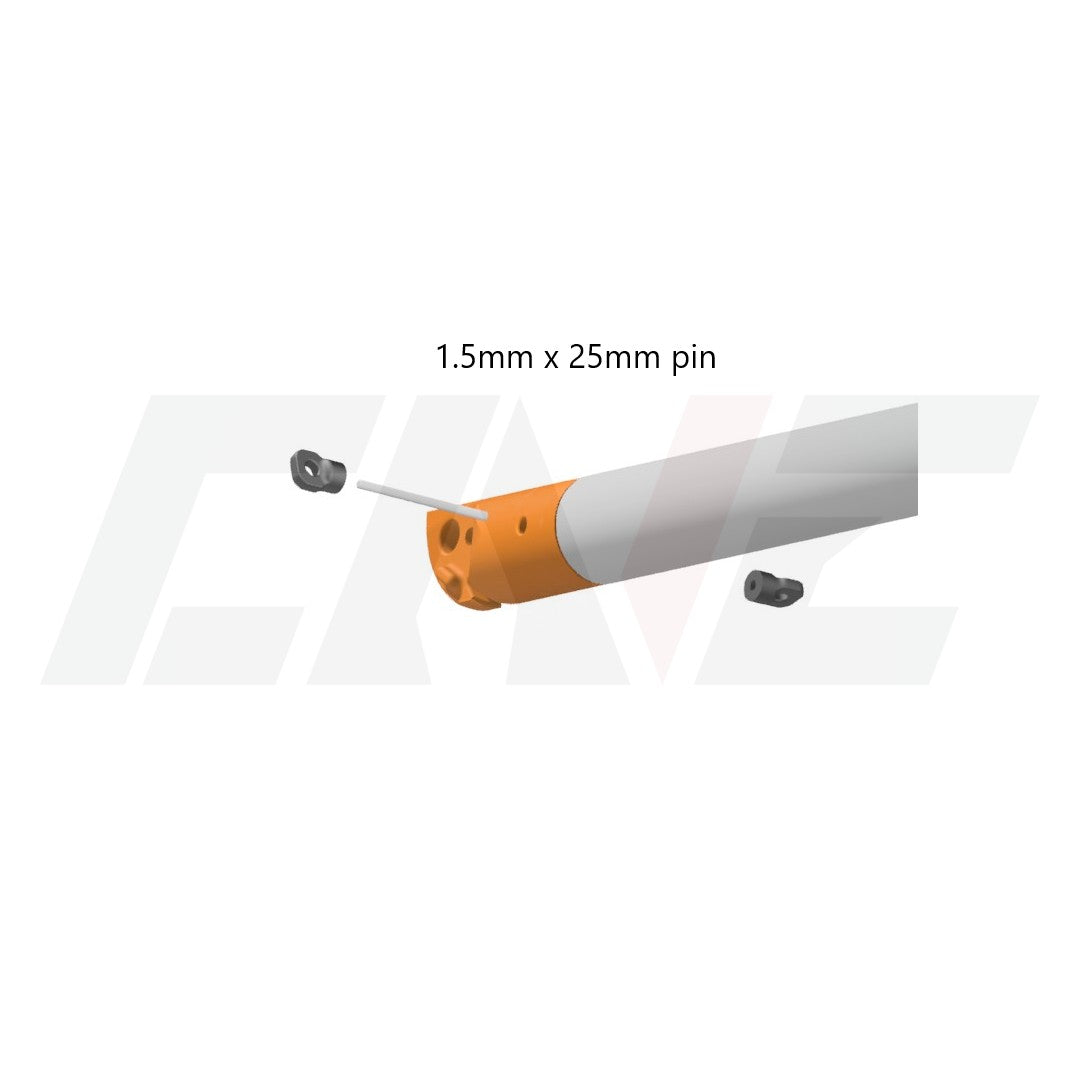

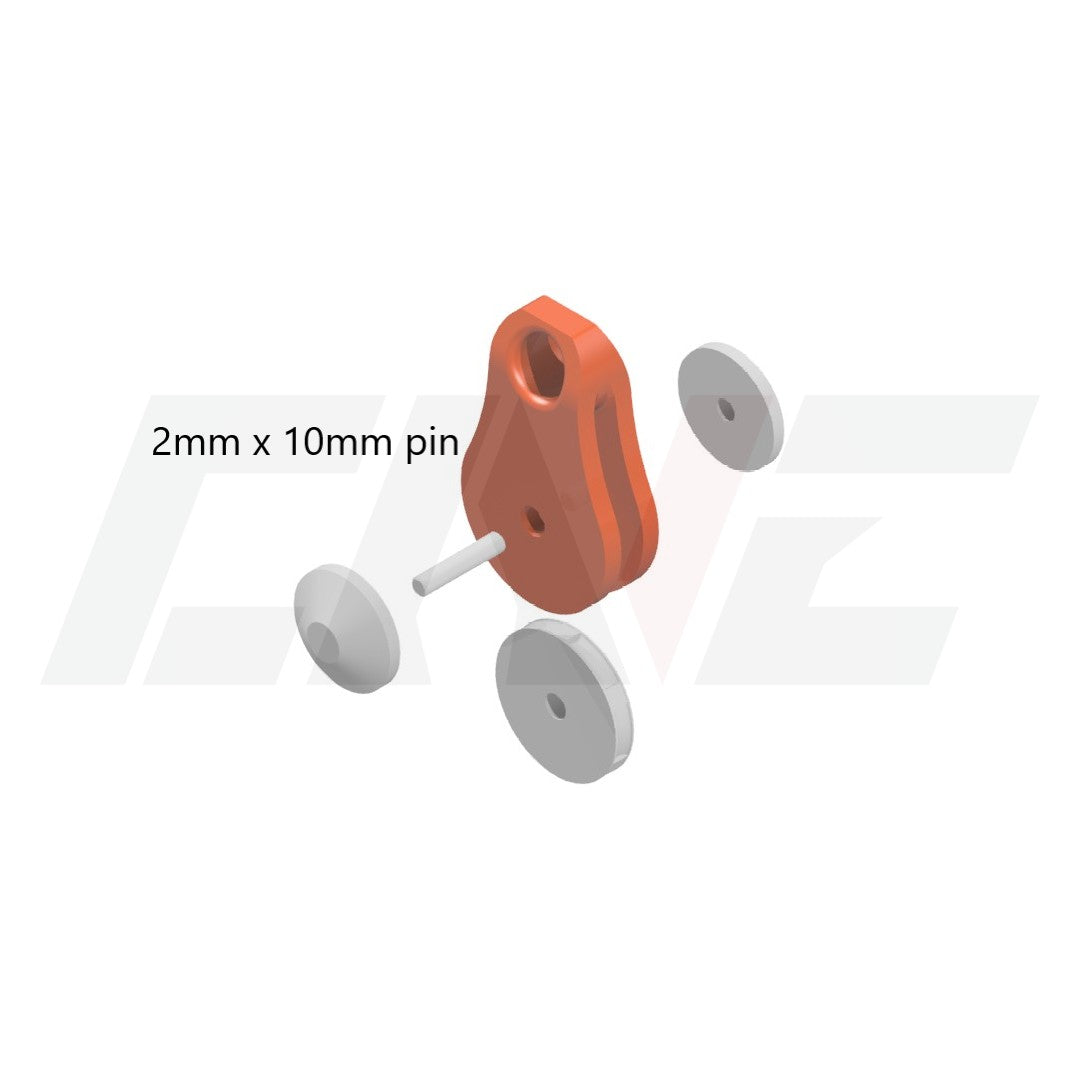

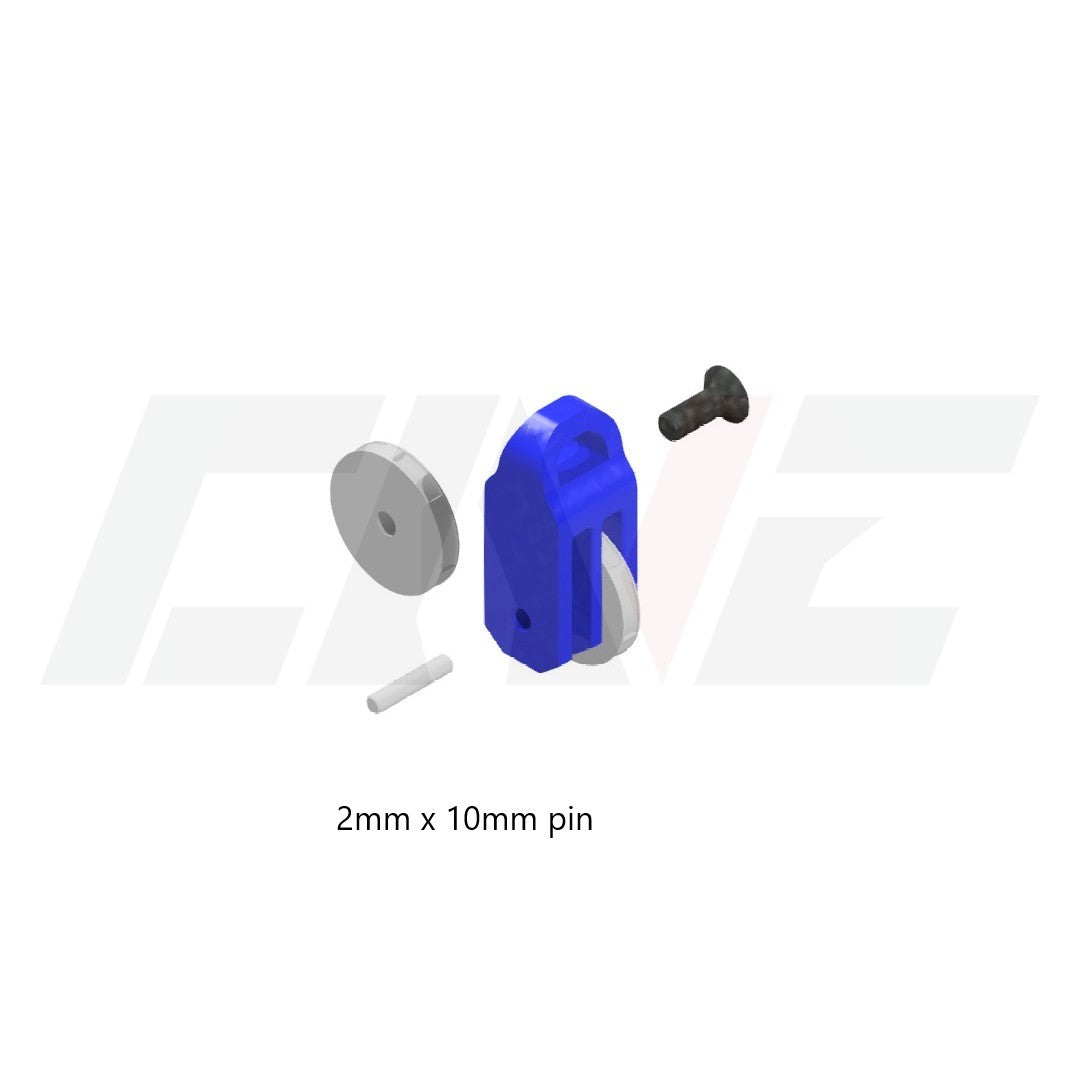

Important: You will need to get your own steel pins, diameter used 2-2,5mm and length over 25mm. Commercial ones

⚠️ License & Terms of Use

This file is licensed for personal and educational use only.

• ✅ Print for personal use
• ✅ Print for your academy or training program
• ❌ Resale of printed models is not permitted
• ❌ Redistribution or resale of STL files is strictly prohibited
• ❌ Commercial use without written authorization from Cave3D is not allowed

Also available

🔺 Want a physical model ready to use?
Check out our [Arizona Vortex Physical Model 1:6] — printed, assembled and shipped worldwide from Chile.
